BEHATEST Capacitive High Voltage Detectors

Model: 90212-90226

Introduction:
● This family of Capacitive High Voltage Detectors have been designed to meet the latest IEC standards.
● Our 902xx Series are self starting and automatically activated when the High Voltage is applied to the contact electrode.
● They can also be manually armed before use by depressing the "TEST/ARMING" button.
● These detectors are intended for use on sinusoidal (50 or 60Hz) High Voltage Systems.
● Models are available to cover systems voltage from 11kV to 132kV.
● Our Detectors are utilized to determine if a system is live or not, so that it maybe safely earthed/grounded.
● All our models are designed for outdoor, but can be utilized indoor and in all weather condition.
● This family of capacitive High Voltage Detectors are housed in a rugged, reinforced nylon moulded casing and are shock drop and vibration resistant.
● Non-standard threshold voltages can be customized to suit applications requirements
● The 902xx Series have a low battery detection which inhibit manual arming when the battery is too low.
● The Nylon case is easy to clean and maintain and the 902xx Series are supplied with the cleaning kit.

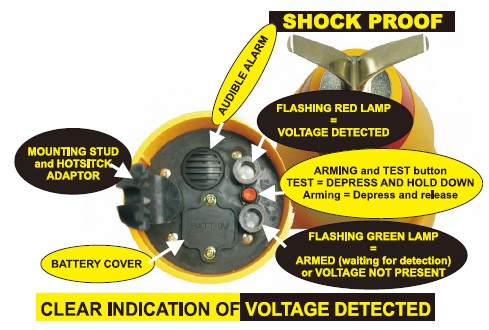

● A visual indication shows when the 902xx Series is armed. When armed, the Green Leds flashes about twice per second.
● When High Voltage is detected, the Red leds flashes about twice per second and the buzzer also buzz intermittently.

Features:
● Excellent Shock Resistance.
● Rugged Nylon moulding.
● Auto-ON(when Voltage Detected).
● Excellent Drop Resistance.
● Good Vibration Resistance.
● Loud Sound Alarm Indication.
● Built-in Proving and self-test circuit.
● High Bright Color Coded LEDs.
● Works from normal 9V battery.
● Interchangeable Contact Electrode.
● Use in All Whether Conditions.
● Compatible with all link sticks.
● Lightweight, Robust & Compact.
● Models available from 11kV to 132kV.
● Suitable for indoor and outdoor use.
● Self(Auto-ON) or Manual Arming.
● Easy access to batteries.
● Customized threshold on demand.
● Auto-Off(if no voltage detected).
● Meets IEC 61243-1/IEC 60068-2-2/IEC 60068-2-6/IEC 60068-2-32/IEC 60529

Models and Comparison Table:

Please note the internal proofing circuit does not test the contact electrode and the protection devices.


Scope of Supply:
1pc 902xx high voltage detector

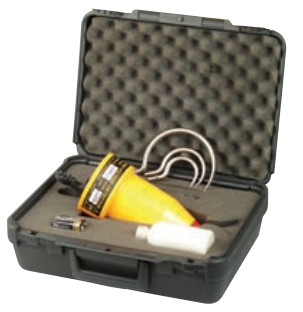

1pc carrying case
3pc metal hook (for hooking wires and cables)
1pc bottle of anti-static cleaning fluid and cleaning cloth
1pc 9V battery








Optional Hot Stick:
1 pc hot stick (1.2m)
1 pc Hot sticks kit 9660B(6.6m)
1 pc Hot sticks kit 9770B
