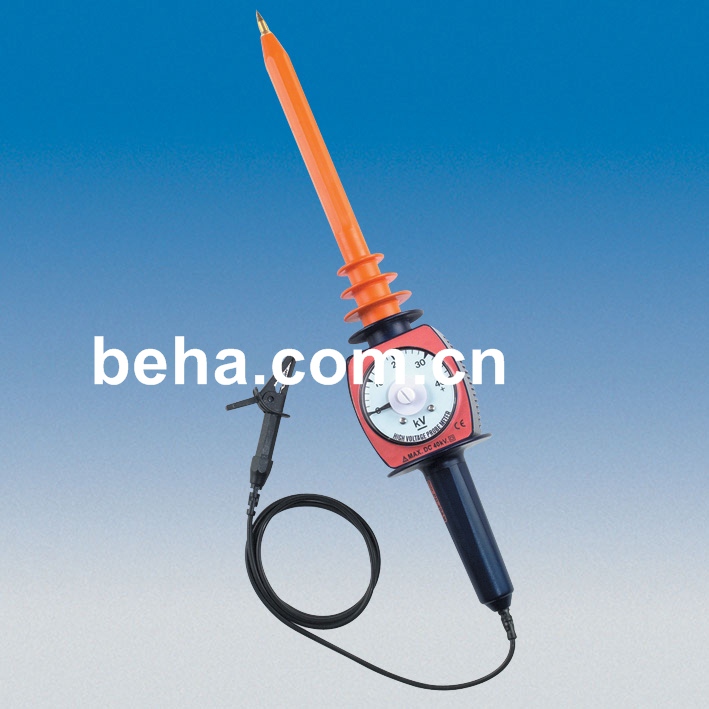

DC High Voltage Probe Meter (up to 40kV)

Model: 9140B

9140B measures positive polarity DC high voltages up to 40kV.
The high voltage probe meter includes a probe tip, a direct reading meter, a ground clip and a high qualify enclosure.
9140B is typically used to measure high voltages in TV sets, power supplies, laboratories and for general high voltage commercial applications.

Features:
● High Voltage Probe Meter
● Dc Voltages Up To 40kv
● This Enclosure Has Good Insulating Properties.
● It Is Light-Weight And Rugged.
● One Tip Is A Round Needle Type For Normal Use, The Other Is A Special Flat Spring Type For Access To A Crt Anode.
● A Alligator Clip That Provides A Good Earth Ground Connection.
● 9140B Is Calibrated In The Factory.
● Under Normal Conditions, The High Voltage Probe Meter Does Not Need A Periodic Calibration.

Input Impedance	600MΩ
Attenuation Ratio	40000 : 1
Accuracy	± 2% (0 ~ 20kV) ± 3% (20kV ~ 40kV)
Max. Working Voltage	DC 40kV
Operating Temperature	0°C ~ 50°C
Storage Temperature	-10°C ~ 60°C
Cable Length	1 m
Weight	Approx. 400g
Note	For Positive Polarity only not for microwave ovens

Scope of Supply:
1pc DC High Voltage Probe Meter 9140B
2 pc Metal hook
1pc Instruction manual
