Non Contact High Voltage Detector|Earth Leakage Detection

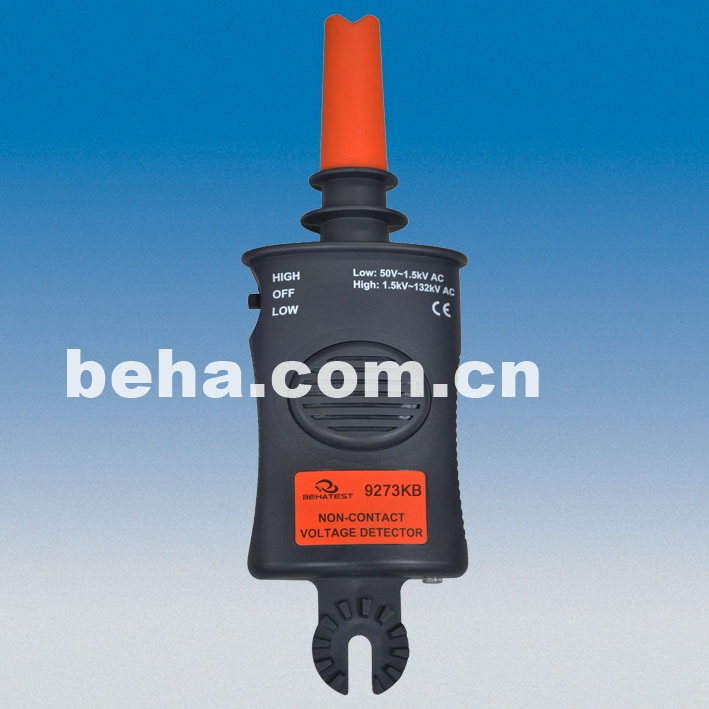

Model: 9273KB

The 9273KB is an ideal tool for checking the presence of AC high voltages and AC low voltages in cables, wall outlet, fuses......etc.
The 9273KB provides a non-contact detection for AC voltages from 50V-132kV. It's also for industrial, utility and mine safety applications.
It's can also for earth lead leakage measurement

Features:
● 2 ranges for selection : LOW 50V~1.5kV
                       HIGH 1.5kV~132kV
● There is no power consumption in off mode : 0uA
● Nice mechanical slide switch for function selection :
HIGH / OFF / LOW
● The power consumption in low voltage detection mode : Less than 20mA
● The power consumption in high voltage detection mode : Less than 20mA
● Bright LED and audible alarm sound when voltage is present.
● With the distance to the voltage closer and closer,
the beep sounds shorter and shorter.
● Lightweight, robust and compact.
● Efficient and easy to use
● Users have to use the Hot Stick when test high voltages between 1.5kV~132kV.
● BEHATEST provides nice optional accessories of Hot Sticks 9660B and 9770B for high voltage detection.
● Optional accessories :
  9660B Hot stick
  9770B Telescopic hot stick (triangle-type).

Technical Data:
● Power and range selection switch
3 positions: HIGH / OFF / LOW
● 2 ranges for selection
Low : 50V~1.5kV
Select the range of LOW (Low voltage range), 9273KB is ready for low voltage detection.
HIGH :1.5kV~132kV
Select the range of HIGH (High voltage range) , 9273KB is ready for high voltage detection.
● Power consumption :
OFF : 0uA
Low voltage detection mode: Less than 20mA
High voltage detection mode : Less than 20mA
● Duty cycle : Continuous
● Response time : Instantaneous
● Operating temperature : 0º~50ºC
● Power source : 9V battery x 1
● Dimensions : 245(L) x 80(W) x 37(D) mm
● Weight : Approx. 200g (Battery included)
● Safety standard : EN 61326-1
● Accessories :
  Instruction manual,  Carry case,  Battery

Scope of Supply:
1 pc Non Contact Voltage Detector 9273KB
1 pc carry bag
1 pc Battery 9 V, IEC 6LR61
1 pc Instruction Manual

Option Order:
1 pc hot stick (1.2m)
1 pc Hot sticks kit 9660B(6.6m)
1 pc Telescopic hot sticks kit 9770B
