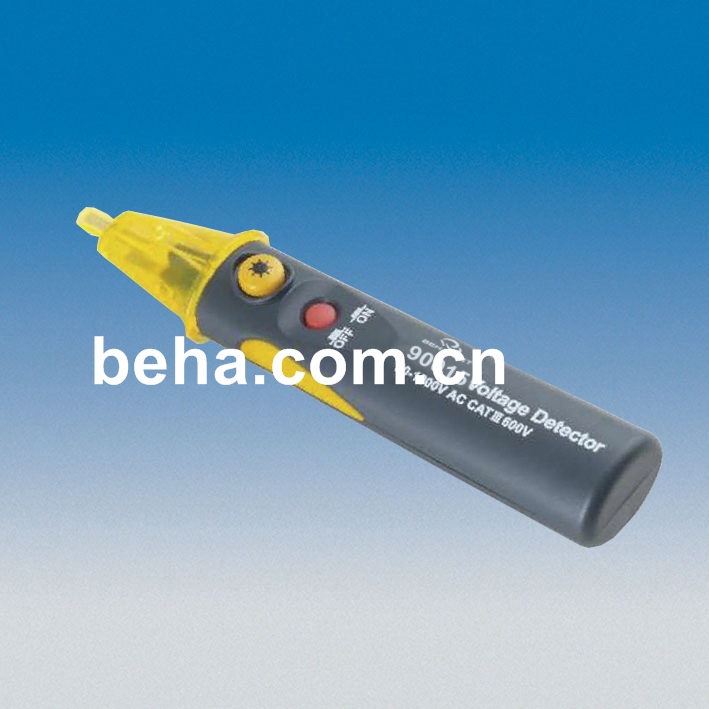

90015 Contact-free Voltage Tester

Model:90015

● Voltage detection : 50V~1000V/AC

● Flash light function.

● ON/OFF switch for longer battery life

Details

Download Data Sheet

Contact-free Voltage Tester

Model: 90015

The non-contact Voltage Detector is intended to check for the presence of AC Voltage, signaling the user with an intermittent tone and a flashing LED.

They are used to detect voltage in outlets, lighting fixtures, circuit breakers, wires, and cables or to find a break in a wire.

Voltage detection : 50V~1000V AC

ON/OFF switch for longer battery life

Features:
● Bright LED and audible alarm sound when voltage is present.
● Designed for non-contact voltage detection. It's safer.
● Can be used to find a break in a wire.
● Flash light function.
● ON/OFF switch for longer battery life.
● EN 61010-1 / EN 61326-1 / CAT III 600V

Technical Data:

Voltage detection	50V~1000V AC
Frequency	50~500 Hz
Indication	LED and Tone
Operating Conditions	Temperature : 0~40°C Humidity : Less than 80% R.H.
Altitude	2000m maximum
Pollution degree	2
Measurement category	CAT III 600V
Power Supply	2 x 1.5 V, IEC LR03
Dimension	142 x 28 x 27 mm
Weight	45g (batteries included)

Scope of Supply:

1 pc Non-contact Voltage Detector 90015

2 pc Batteries 1,5 V, IEC LR03

1 pc Instruction Manual
