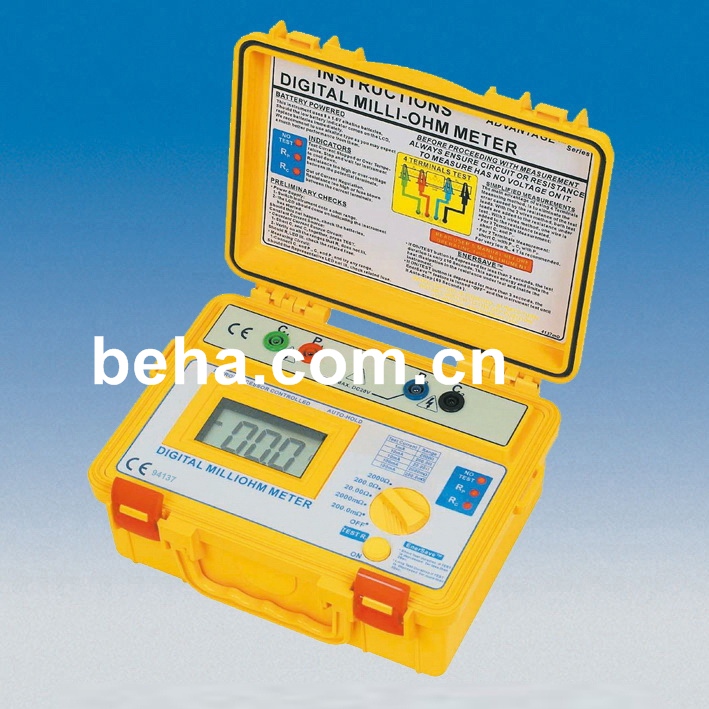

The meter digital milli-ohmmeter is a battery operated instrument wich supply a low current to the circuit under test, with which, stable, accurate measurement of low resistance can be made, still, over a wide range of values.

Test Current: 100mA/10mA/1mA

Features:
● Four terminal measurement.
● Measures down to 100μΩ.
● 5 Ranges from 200.0mΩ to 2000Ω.
● Maximum resolution of 100μΩ
● Three test currents with over-temperature protection.
● Protection against inadvertent connection to overvoltage.
● Large LCD.
● Potential lead resistance, current lead resistance checks.
● "Full-Featured" EnerSaveTM inside.
● EnerSaveTM AUTO-HOLD.
● EnerSaveTM AUTO-OFF.
● Lightweight, robust & compact.
● Indicators show if reading may be invalid (RP, RC, and temperature).
● "O-Ring" sealed case.
● Future optional rechargeable battery.
● EN 61010-1 / EN 61326-1 / CAT III 20V

Display	3 1/2 digit (1999 counts)
Measuring Ranges	0-200.0 mΩ in steps of 100 μΩ 0-2000 mΩ in steps of 1 mΩ 0-20.00 Ω in steps of 10 mΩ 0-200.0 Ω in steps of 100 mΩ 0-2000 Ω in steps of 1Ω
Accuracy	± (0.5%rdg+2digits)
Test Current	1mA / 2000 Ω range 10mA / 200/20 Ω ranges 100mA / 2000/200 mΩ ranges
Test Current Accuracy	± 0.1%
Power supply	8 x 1.5 V, IEC LR6
Protection Fuses	Mains / 0.5A, HBC, 5 x 20mm, DIN Current / 0.5A, HBC, 5 x 20mm, DIN Voltage / 0.5A, HBC, 5 x 20mm, DIN
Dimensions	205 x 190 x 110 mm
Weight	Appox. 1500g
