Microhm Meter / Resistance Measuring

Model: 96237

Introduction:

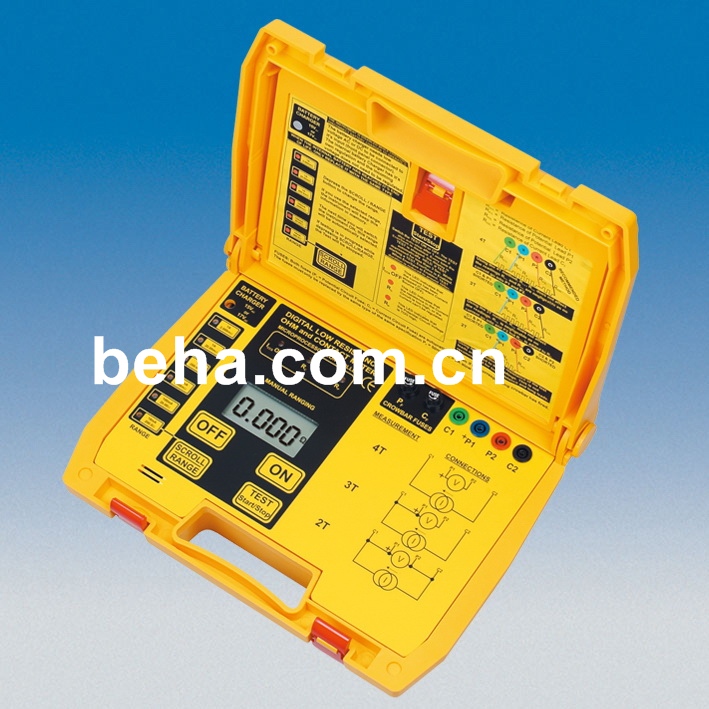

The Microhm Meter is a "full feature professional instrument".
The 96237 makes measurements by passing a constant current through the
device under test (generally a conductor, contact or low resistance) and measuring the voltage across it.
It has visual LED checks for excessive; potential lead resistance (RP) and current lead resistance (RC). Should the instrument become too warm, the temperature sensor will shut down the current (ISCOFF).
This instrument is indispensable to laboratory applications and to field applications to measure bonding joints, circuit breakers contact resistance, fuse resistance, testing earth bonds in mines, rail bond when a rail is used as part of a communication system or for power transmission, Checking the plating quality on PCBs, contacts of relays, continuity or ring circuits and of protective conductors etc...

Features:
● Microprocessor controlled.
● Measure down to 1μΩ.
● 6 ranges from 2.000mΩ to 200.0Ω.
● Maximum resolution of 1μΩ.
● Three Test Current with Over- Temperature Protection.
● Four Terminal Measurement.
● Protection against inadvertent connection to over-voltage
● Clear & large LCD.
● Potential lead resistance, current lead resistance checks.
● "Full Featured" EnerSaveTM Inside.
● EnerSaveTM AUTO-HOLD.
● EnerSaveTM AUTO-OFF.
● Rechargeable battery operated, robust & compact.
Indicators shows if reading may be invalid (RP, Rc).
● "O-Ring" sealed case.
● Portable - Rechargeable battery.
● EN 61010-1 / EN 61326-1

Display	3 1/2 digit (1999 counts)
Ranges/Resolution	0-2.000 mΩ/1 μΩ 0-20.00 mΩ/10 μΩ 0-200.0 mΩ/100 μΩ 0-2.000 Ω/1 mΩ 0-20.00 Ω/10 mΩ 0-200.0 Ω/100 mΩ
Accuracy	0-2.000 mΩ : ±(5%+5digits) 0-20.00 mΩ : ± (4%+4digits) 0-200.0 mΩ : ± (4%+4digits 0-2.000 Ω : ±(3%+4digits) 0-20.00 Ω : ± (2%+4digits) 0-200.0 Ω : ± (2%+4digits)
Test Current (DC)	2.000 mΩ to 200.0 mΩ : 1A±3% 200.0 mΩ to 20.0Ω : 100mA ±2% 200.0 Ω : 10mA ±1.5%
Battery	12 V rechargeable
Power Source	Rechargeable battery
Dimensions	330 x 260 x 160 mm
Weight	Appox. 3.2kg (battery included)
